In industrial equipment, a stable electrical connection is not only about current and voltage. It is also about protection, durability, safety, and long-term reliability. Machines often work in environments with dust, vibration, moisture, oil, temperature changes, and frequent maintenance. A standard plastic connector may not be strong enough for these conditions.

This is where the heavy duty connector becomes important.

A heavy duty connector is a rugged industrial connector designed to provide secure power, signal, or control connections in demanding environments. Compared with ordinary connectors, it usually features a stronger housing, reliable locking structure, replaceable inserts, and better protection against dust, water, and mechanical stress.

Among different types of industrial rectangular connectors, the HA Series heavy duty connector is one of the most widely used options for compact industrial power connections. It is commonly available in configurations such as 3+PE, 4+PE, 5+PE, and 7+PE, making it suitable for machinery, automation equipment, control cabinets, power distribution systems, and outdoor industrial devices.

This guide explains what a heavy duty connector is, how HA Series connectors are structured, and how to choose the right connector for your application.

What Is a Heavy Duty Connector?

A heavy duty connector, also called an industrial rectangular connector, is a connector system designed for harsh industrial working conditions. It usually combines a metal housing, an insulating insert, metal contacts, cable gland, sealing gasket, and a locking lever.

The main purpose of a heavy duty connector is to make wiring easier, safer, and more reliable. Instead of wiring cables directly into equipment every time, users can connect and disconnect power or signal lines through a protected plug-and-socket system.

This is especially useful for modular machines, control cabinets, production lines, and equipment that needs regular maintenance. When a machine module needs to be replaced or moved, the connector can be disconnected quickly without rewiring the entire system.

For industrial users, this means:

• Faster installation
• Easier maintenance
• More reliable electrical contact
• Better protection against dust and moisture
• Stronger resistance to vibration and mechanical impact
• Cleaner and more organized wiring

Because of these advantages, heavy duty connectors are widely used in manufacturing equipment, automation systems, robotics, packaging machines, CNC machines, rail equipment, power cabinets, and outdoor industrial devices.

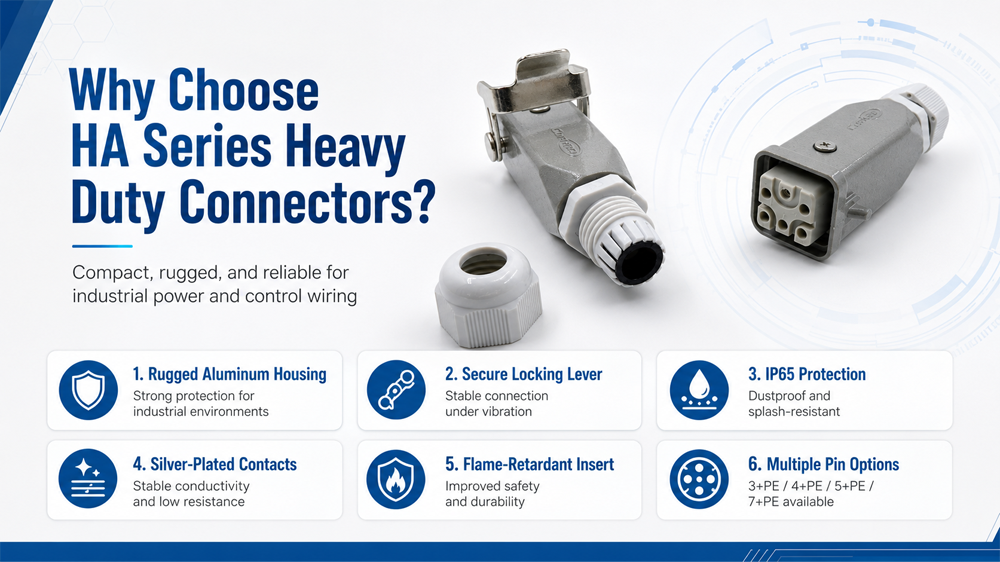

Why Choose HA Series Heavy Duty Connectors?

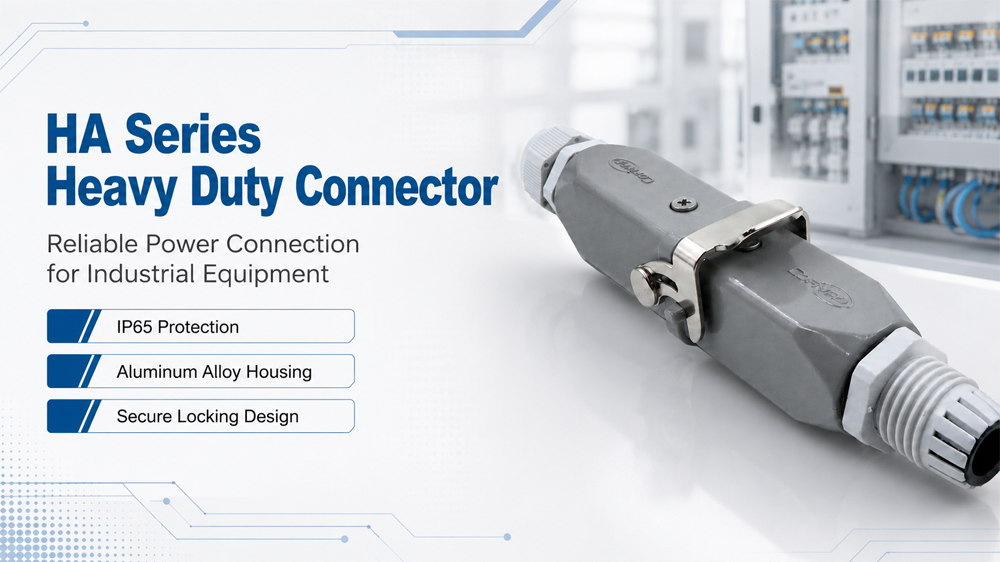

The HA Series connector is a compact and practical type of heavy duty connector. It is designed for industrial power and control wiring where space is limited but a secure connection is still required.

Compared with larger heavy duty connector series, HA Series connectors are smaller and easier to install. They are often used for low-to-medium power connections, equipment wiring, and compact machine interfaces.

A typical HA Series heavy duty connector provides several important advantages:

1. Rugged aluminum housing
The outer shell is usually made from cast aluminum alloy. This gives the connector better mechanical strength than ordinary plastic connectors. It helps protect the internal insert and contacts from impact, pressure, and environmental damage.

2. Secure locking lever
The metal locking structure keeps the plug and socket firmly connected. This is especially important in equipment with vibration or movement. A stable locking system helps prevent accidental disconnection during operation.

3. IP65 protection
Many HA Series connectors are designed with IP65 protection when properly assembled with suitable housing, gasket, and cable gland. This helps protect the connection from dust and water spray, making it suitable for industrial environments.

4. Silver-plated contacts
Silver-plated contacts help improve conductivity and reduce contact resistance. This makes the connection more stable, especially in applications where reliable current transmission is important.

5. Flame-retardant insert
The insulating insert is commonly made from flame-retardant material. This helps improve safety and stability inside the connector body.

6. Multiple pin options
HA Series connectors are available in different pole configurations, such as 3+PE, 4+PE, 5+PE, and 7+PE. This gives engineers and buyers more flexibility when choosing a connector for different wiring requirements.

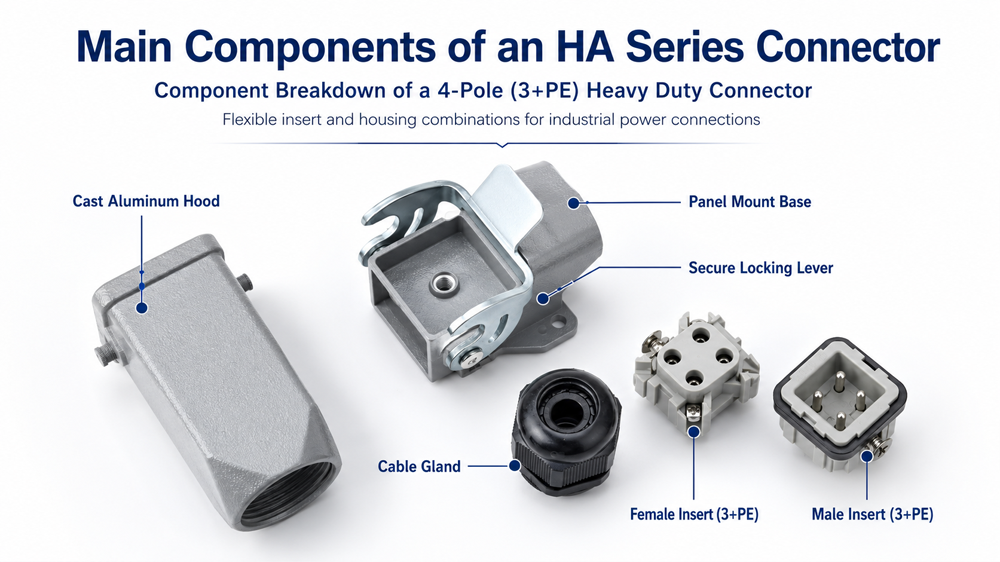

Main Components of an HA Series Connector

A complete HA Series heavy duty connector usually includes several key parts.

1. Hood or Housing

The housing is the outer metal shell of the connector. It protects the internal insert and contacts from dust, moisture, impact, and mechanical stress. The housing also provides the mounting and locking structure.

For industrial applications, a cast aluminum alloy housing is commonly used because it is strong, lightweight, and suitable for harsh environments.

2. Male and Female Inserts

The insert is the insulating part that holds the contacts. HA Series connectors usually use a male insert and a female insert. These two parts match together to create the electrical connection.

The insert design keeps each contact in the correct position and helps prevent short circuits between terminals.

3. Contacts

Contacts are the conductive parts of the connector. They transfer power or signals from one side to the other. For HA Series connectors, copper alloy contacts with silver plating are commonly used to provide stable conductivity.

Depending on the model, the contacts may use screw termination or crimp termination.

4. Cable Gland

The cable gland is installed where the cable enters the housing. It helps hold the cable firmly and improves sealing performance. A good cable gland can reduce cable pulling stress and help prevent dust or moisture from entering the connector.

5. Locking Lever

The locking lever keeps the connector closed and secure. This is one of the most recognizable features of heavy duty connectors. In industrial environments, a reliable lock is important because vibration or movement may loosen ordinary connectors.

6. Sealing Gasket

The sealing gasket helps improve water and dust protection between the mating parts. When the connector is properly assembled, the gasket helps the connector achieve better environmental protection.

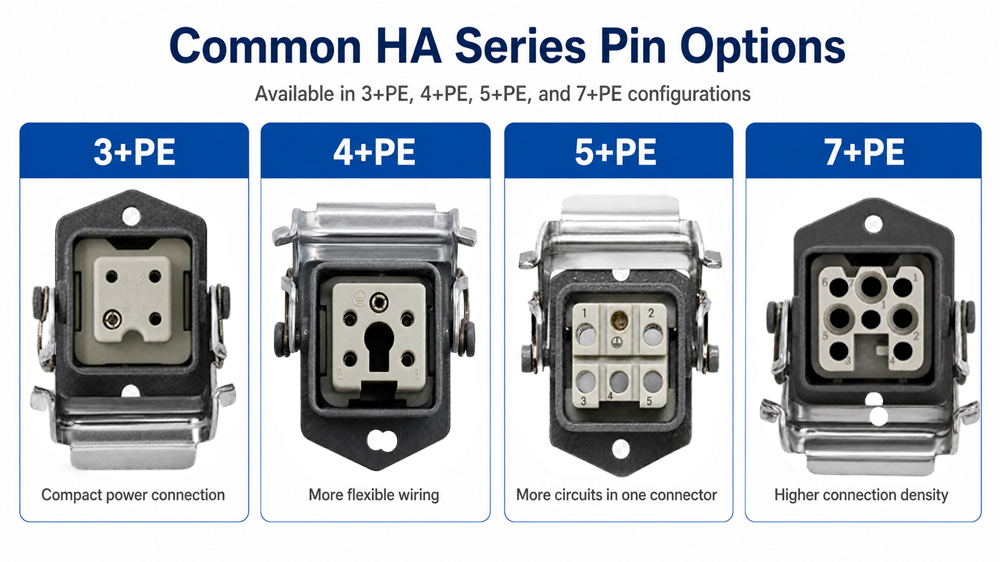

Common HA Series Pin Options: 3+PE, 4+PE, 5+PE, and 7+PE

One reason HA Series connectors are popular is that they offer different pole configurations. The “PE” means protective earth, also known as the grounding contact.

3+PE Connector

A 3+PE connector includes three working contacts plus one protective earth contact. It is commonly used for compact power connections where grounding is required.

This option is suitable for simple industrial power wiring, small machines, and equipment modules.

4+PE Connector

A 4+PE connector provides four working contacts plus one protective earth contact. It gives more wiring flexibility than 3+PE and is often used in industrial control and power applications.

5+PE Connector

A 5+PE connector is suitable when more circuits are needed in one connector. It can help reduce wiring complexity and make equipment assembly cleaner.

7+PE Connector

A 7+PE connector provides more connection points in a compact housing. It is useful for equipment that requires multiple power or control lines while still needing a secure industrial connector structure.

When choosing between these options, buyers should check the number of wires, current rating, voltage rating, installation space, and termination method.

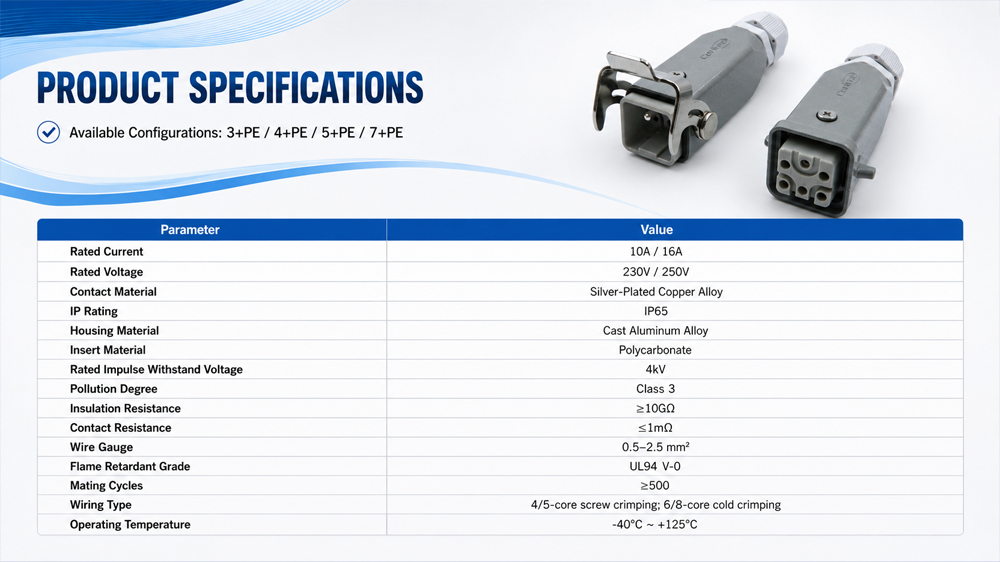

Key Specifications to Check Before Buying

Before choosing a heavy duty connector, it is important to check the main technical specifications. Different applications may require different connector ratings.

Rated Current

Rated current tells you how much current the connector can safely carry. For HA Series connectors, common current ratings include 10A or 16A, depending on the pole configuration and contact design.

Always choose a connector with a current rating that matches or exceeds your application requirement.

Rated Voltage

Voltage rating is another important parameter. HA Series connectors are often used for industrial low-voltage power and control wiring. Common voltage ratings include 230V or 250V, depending on the specific model.

Protection Level

For industrial environments, protection level is very important. An IP65 heavy duty connector can help protect against dust and water spray when properly installed. This makes it suitable for many indoor and outdoor industrial applications.

Housing Material

A cast aluminum alloy housing provides better durability and mechanical protection. It is a good choice for machinery, automation equipment, and harsh working conditions.

Contact Material

Silver-plated copper alloy contacts are commonly used for stable conductivity and low contact resistance. For buyers, this is an important selling point because contact quality directly affects electrical reliability.

Wiring Method

HA Series connectors may use screw termination or crimp termination. Screw termination is convenient for installation and maintenance. Crimp termination can provide a stable connection when assembled with the correct tools.

Operating Temperature

Industrial connectors may face high or low temperatures during operation. A wide operating temperature range, such as -40°C to +125°C, helps improve reliability in different working environments.

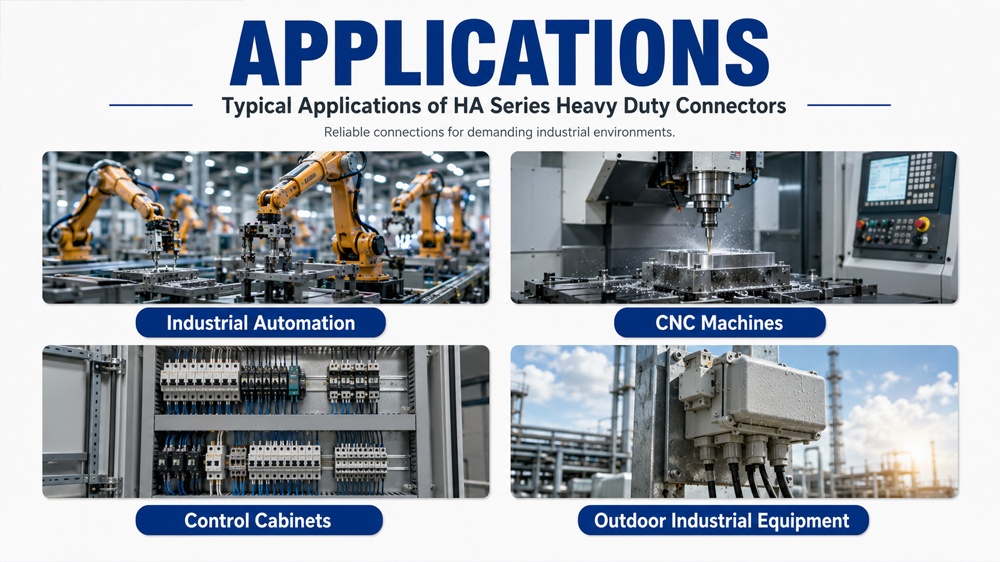

Typical Applications of HA Series Heavy Duty Connectors

HA Series heavy duty connectors are widely used in industrial power and control systems. Their compact size and strong structure make them suitable for many types of equipment.

Common applications include:

• Industrial automation equipment
• CNC machines
• Packaging machines
• Robotics systems
• Control cabinets
• Power distribution boxes
• Motor connection systems
• Outdoor industrial devices
• Production line equipment
• Mechanical equipment modules

For example, in an automation production line, different machine modules may need to be connected and disconnected during installation or maintenance. Using a heavy duty connector can make this process faster and safer.

In a control cabinet, HA Series connectors can help organize wiring and make external equipment connections cleaner. Instead of running multiple loose wires, the connector provides a structured and protected interface.

For outdoor equipment, the IP65 housing and cable gland can help protect the connection from dust and water spray, improving long-term reliability.

How to Choose the Right Heavy Duty Connector

To choose the right HA Series heavy duty connector, you can follow a simple selection process.

First, confirm the number of wires you need. If your application requires three working wires plus grounding, a 3+PE connector may be enough. If you need more circuits, choose 4+PE, 5+PE, or 7+PE.

Second, check the current and voltage requirements. Make sure the connector rating matches your equipment. Do not choose a connector only by appearance.

Third, consider the working environment. If the connector will be used in dusty, humid, or outdoor conditions, choose a housing with suitable IP protection.

Fourth, check the installation method. Some applications need panel mounting, while others need cable-to-cable connection. Make sure the hood, base, insert, and cable gland match your installation design.

Fifth, choose the right wiring method. Screw termination is simple and convenient, while crimp termination may be preferred for stable mass production assembly.

Finally, check whether the connector needs special requirements such as flame-retardant material, salt spray resistance, silver-plated contacts, or wide temperature range.

After checking these selection factors, you can view our [HA Series Heavy Duty Connectors] to compare available configurations and choose the right solution for your industrial application.

Why Choose OLINK HA Series Heavy Duty Connectors

When you source heavy duty connectors, the difference between a supplier and a partner comes down to four things: certifications, flexibility, speed, and minimums.

Certified for Global Markets

Every OLINK HA Series connector ships with CE and RoHS certification, covering the European EMC/LVD directives and hazardous substance restrictions. No vague "meets standards" language — we provide the documentation upfront. If your equipment ships to Europe, North America, or Southeast Asia, our certifications are already in place.

True Low MOQ: Start With 10 Units

Most heavy duty connector suppliers enforce high minimums. Not here. OLINK starts at an MOQ of just 10 pieces across all HA Series configurations — 3+PE, 4+PE, 5+PE, and 7+PE. Whether you are prototyping a single control cabinet or validating a new machine design, you do not need to overcommit before you are ready.

10-Day Lead Time, Backed by Stock

We carry substantial inventory across the full HA range. Standard orders ship within 10 business days. No waiting weeks for production scheduling — the connectors are on the shelf, tested, and ready to go. For urgent projects, ask about our express fulfillment options.

Full Customization, No Limits

Need a non-standard pin count? A custom cable assembly with specific wire gauge and length? A modified housing finish or gland configuration? OLINK builds to your spec. Our in-house engineering team handles custom pin layouts, pre-assembled cable harnesses, and bespoke connector configurations — so you get exactly what your equipment requires, not a compromise.

Built for the Industrial Floor

Every OLINK HA Series connector features:

• Die-cast aluminum alloy housing for impact and corrosion resistance
• Silver-plated copper alloy contacts for stable, low-resistance conductivity
• IP65 sealing when mated with the correct hood and cable gland
• Flame-retardant thermoplastic inserts for electrical safety

Conclusion

A heavy duty connector is not a commodity part. In an environment where dust, vibration, and moisture are daily realities, the connector is the single point of failure you cannot afford to get wrong.

The HA Series gets the fundamentals right: compact footprint, aluminum housing, IP65 sealing, and the pin flexibility (3+PE to 7+PE) to handle most industrial power and control wiring without overcomplicating your BOM.

But fundamentals alone do not make a supply decision. What matters is whether you can get them certified, fast, in small batches, and built to your exact spec.

That is where OLINK comes in:

• CE + RoHS certified — ship to global markets without paperwork delays
• MOQ 10 — validate your design without overstocking
• 10-day lead time — inventory on the shelf, not in a production queue
• Full customization — pin count, cable assemblies, housing configuration — we build what you need

If your equipment requires a connector you can trust on the factory floor and a supplier you can trust on the timeline, request a quote or send us your specifications.
