Introduction

Waterproof connectors are widely used in outdoor lighting, industrial automation, marine equipment, renewable energy systems, and many other applications exposed to moisture and harsh environments. While manufacturers often rate their products as IP67 or IP68, proper installation and regular inspection are essential to ensure reliable waterproof performance.

A connector labeled as waterproof does not automatically guarantee protection if it is installed incorrectly, damaged during use, or paired with incompatible cables. This guide explains several simple methods for connector waterproof testing and helps you verify whether your waterproof connectors are truly protecting your electrical systems.

Why Waterproof Testing Matters

Water intrusion can lead to various problems, including:

• Electrical short circuits
• Signal interruption
• Corrosion of contact pins
• Equipment failure
• Increased maintenance costs

Even a high-quality IP67 waterproof connector can lose its sealing performance if the sealing components become damaged or improperly assembled.

Regular inspection and testing help identify potential issues before they result in costly downtime.

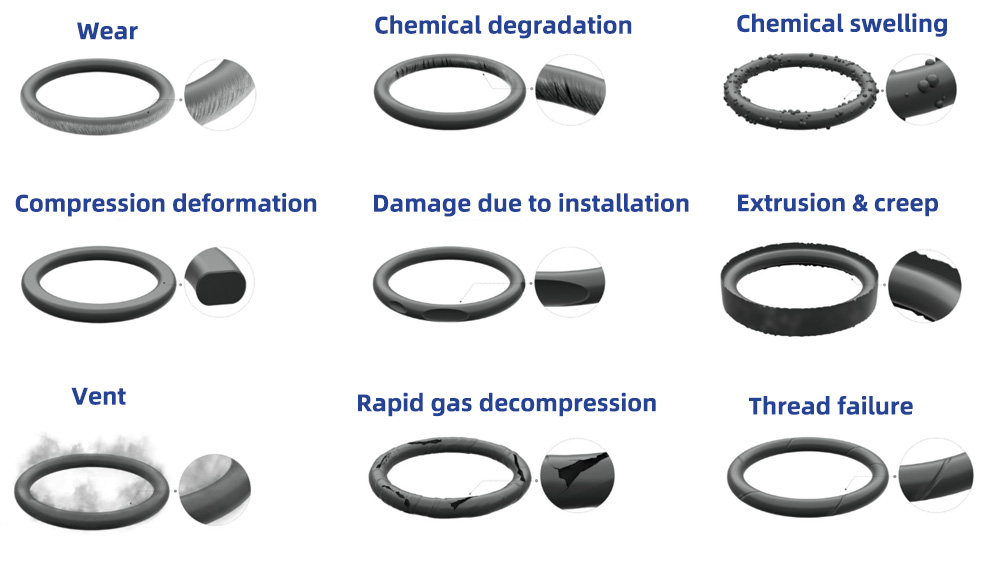

1. Inspect the Sealing Components

The first step in evaluating waterproof performance is a visual inspection.

Check the following:

• O-rings and rubber gaskets for cracks or deformation
• Missing sealing rings
• Damaged connector housings
• Signs of wear around cable entry points

A damaged sealing element can significantly reduce the waterproof capability of the connector.

What to Look For

Good Condition:

• Smooth and flexible rubber seals
• No visible cracks
• Proper alignment

Warning Signs:

• Flattened O-rings
• Cuts or tears
• Hard or brittle rubber

2. Verify Proper Cable Diameter Compatibility

One common cause of water leakage is using a cable that does not match the connector’s specified cable diameter range.

Most waterproof connectors rely on compression seals that tighten around the cable jacket. If the cable is too small, the seal may not compress properly.

Before installation:

• Check the connector specification
• Verify the cable diameter
• Ensure the cable gland is tightened correctly

Using the correct cable size is one of the simplest ways to maintain waterproof integrity.

3. Confirm Proper Connector Assembly

Improper assembly is another major reason waterproof connectors fail in real-world applications.

When assembling the connector:

1. Follow the manufacturer's instructions.
2. Ensure all threaded parts are fully tightened.
3. Confirm that sealing rings remain in their intended positions.
4. Avoid cross-threading.

Many waterproof failures occur not because of product defects but because the connector was not fully secured during installation.

4. Perform a Basic Water Exposure Test

A practical method of connector waterproof testing is controlled water exposure.

Spray Test

For connectors used in outdoor environments:

• Connect and tighten the connector completely.
• Spray water from multiple angles.
• Continue for several minutes.
• Disconnect and inspect the interior.

Temporary Immersion Test

For products rated as an IP67 waterproof connector:

• Ensure the connector is properly assembled.
• Immerse it in clean water according to the product's rated specifications.
• Remove and inspect for moisture.

Always follow the manufacturer's recommended testing conditions and IP rating limits.

5. Check for Moisture After Testing

After water exposure, carefully inspect the connector interior.

Look for:

• Water droplets
• Condensation
• Damp surfaces
• Corrosion marks

Even a small amount of moisture may indicate a sealing issue that requires attention.

Using a flashlight can help reveal hidden signs of water ingress.

6. Monitor Long-Term Performance

Some waterproof failures only appear after months of operation.

During routine maintenance, inspect connectors for:

• Corrosion on contacts
• Discoloration
• Damaged seals
• Reduced locking performance

Environmental factors such as UV exposure, temperature fluctuations, vibration, and chemical exposure can gradually affect sealing effectiveness.

Regular inspections help ensure continued reliability.

Understanding IP67 Waterproof Connector Ratings

An IP67 waterproof connector is designed to provide:

• Complete protection against dust ingress (IP6X)
• Protection against temporary immersion in water up to specified conditions (IPX7)

However, the IP rating is achieved under controlled testing conditions. Actual performance depends heavily on proper installation, maintenance, and operating environment.

Therefore, field verification remains an important part of ensuring long-term waterproof performance.

Common Waterproof Testing Mistakes

Avoid these common errors:

• Testing an unassembled connector
• Ignoring damaged O-rings
• Using incompatible cable sizes
• Over-tightening or under-tightening components
• Exceeding the connector's rated immersion depth or duration

Correct testing procedures provide more reliable and meaningful results.

Conclusion

Testing whether your waterproof connectors are truly waterproof does not always require specialized laboratory equipment. By inspecting sealing components, verifying cable compatibility, performing basic water exposure tests, and monitoring long-term performance, you can significantly reduce the risk of water ingress and equipment failure.

Whether you are working with an IP67 waterproof connector in industrial automation, outdoor lighting, renewable energy systems, or marine applications, regular connector waterproof testing is an essential part of maintaining reliable electrical connections.

A well-designed connector combined with proper installation and routine inspection is the best way to ensure lasting waterproof protection in demanding environments.
